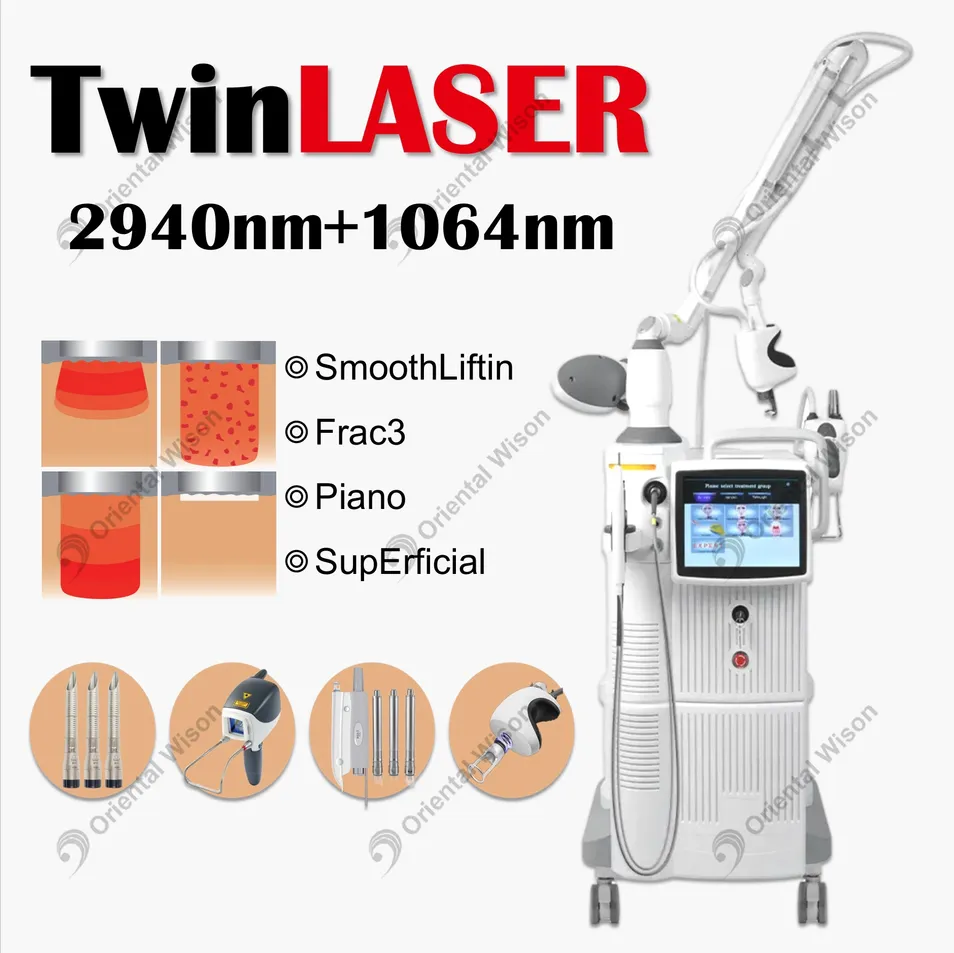

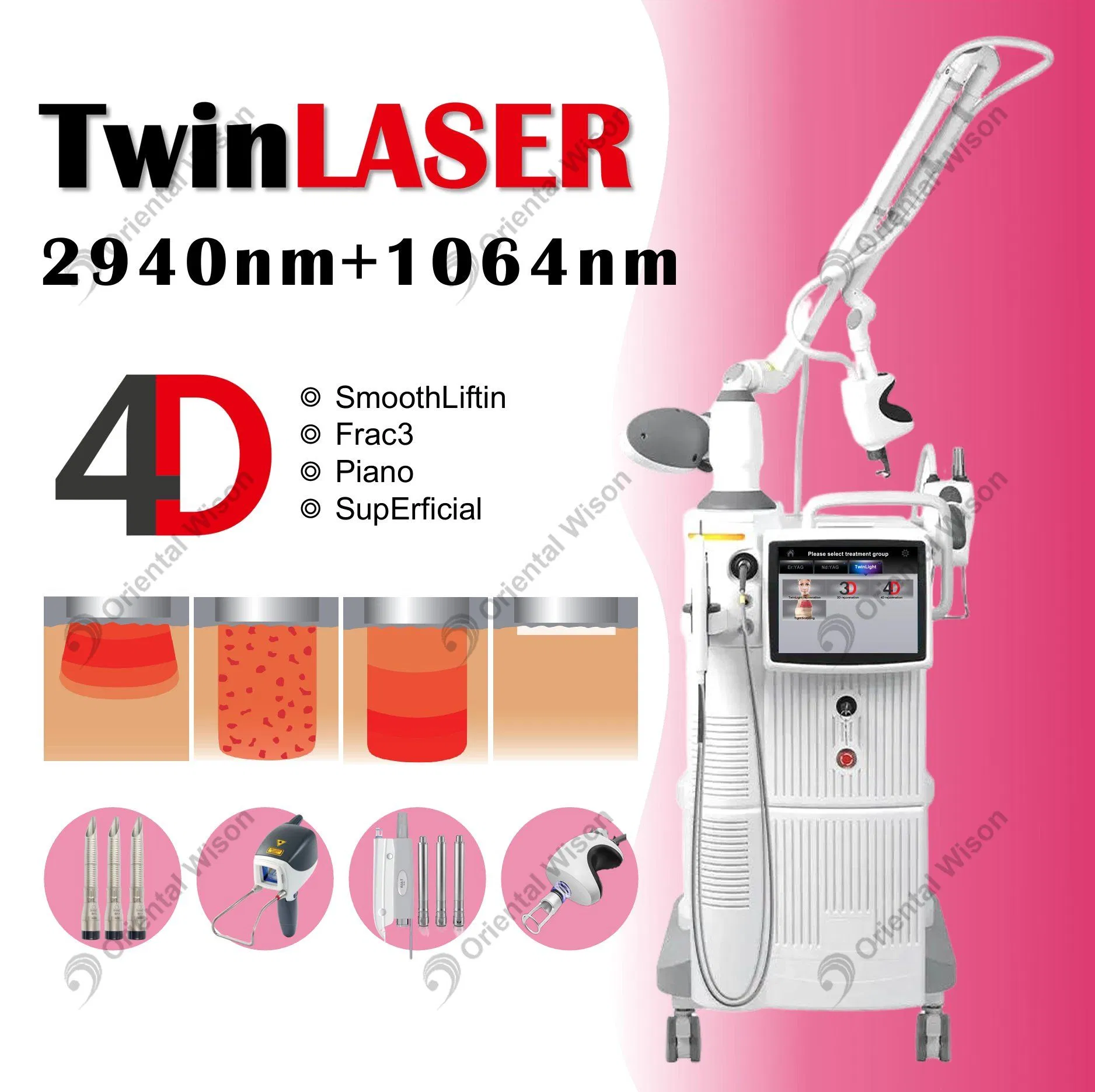

2940nm+1064nm TwinLaser is a four-dimensional non-invasive beauty device that effectively addresses skin problems and promotes skin regeneration. It uses different wavelengths to deliver laser energy to tissues to treat patients' skin problems. In the process, collagen can be increased while the skin regains lost elasticity and moisture.
It combines two complementary wavelengths: 1064nm Nd:YAG and 2940nm Er:YAG. It is a series of synergistic non-invasive laser treatments that target the face and inside the mouth to fully contract collagen for lasting firmness and volume without injections.
Four treatment modes for comprehensive anti-aging on four different levels, acting on the deep, inner and surface connective structures of the skin and treating blemishes.

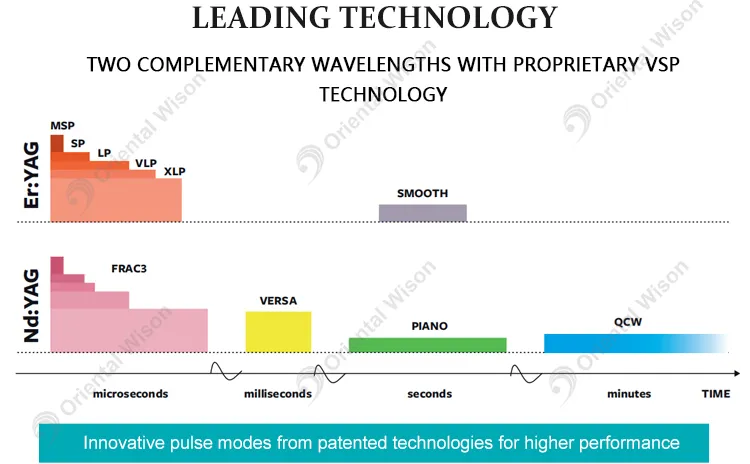

Why choose a combination of Er:YAG and Nd:YAG lasers?

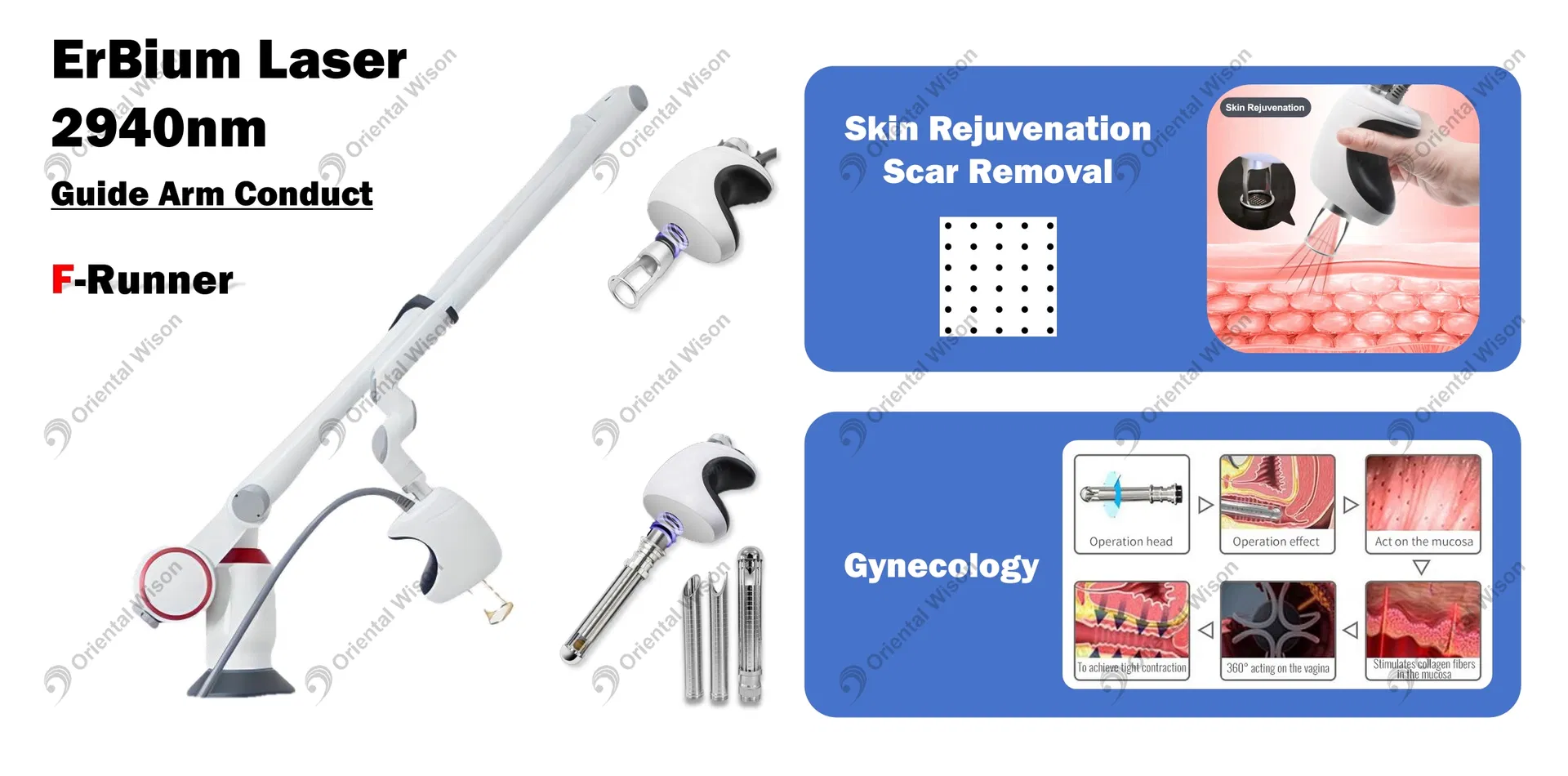

VSP (Variable Square Wave) Er:YAG lasers ablate the skin with greater precision than other wavelengths. Er:YAG energy is highly absorbed in water, allowing it to vaporize the skin with micron-level precision and very low thermal conduction. This minimizes adverse reactions such as hypopigmentation and persistent erythema, as well as downtime.
The Nd:YAG laser perfectly complements the ablative action, penetrating deep into the skin to produce a thermal effect without damaging the skin's surface. Its even absorption in the skin and low melanin absorption make it safe for use on all skin types.
1. Skin Tightening: Achieve a tightening effect inside and outside, improving overall facial quality.
2. Wrinkle Removal: Effectively remove facial wrinkles, especially those caused by sagging and relaxation around eyes and mouth.
3. Skin Brightening: Brighten the complexion and remove facial spots for a consistent skin tone.

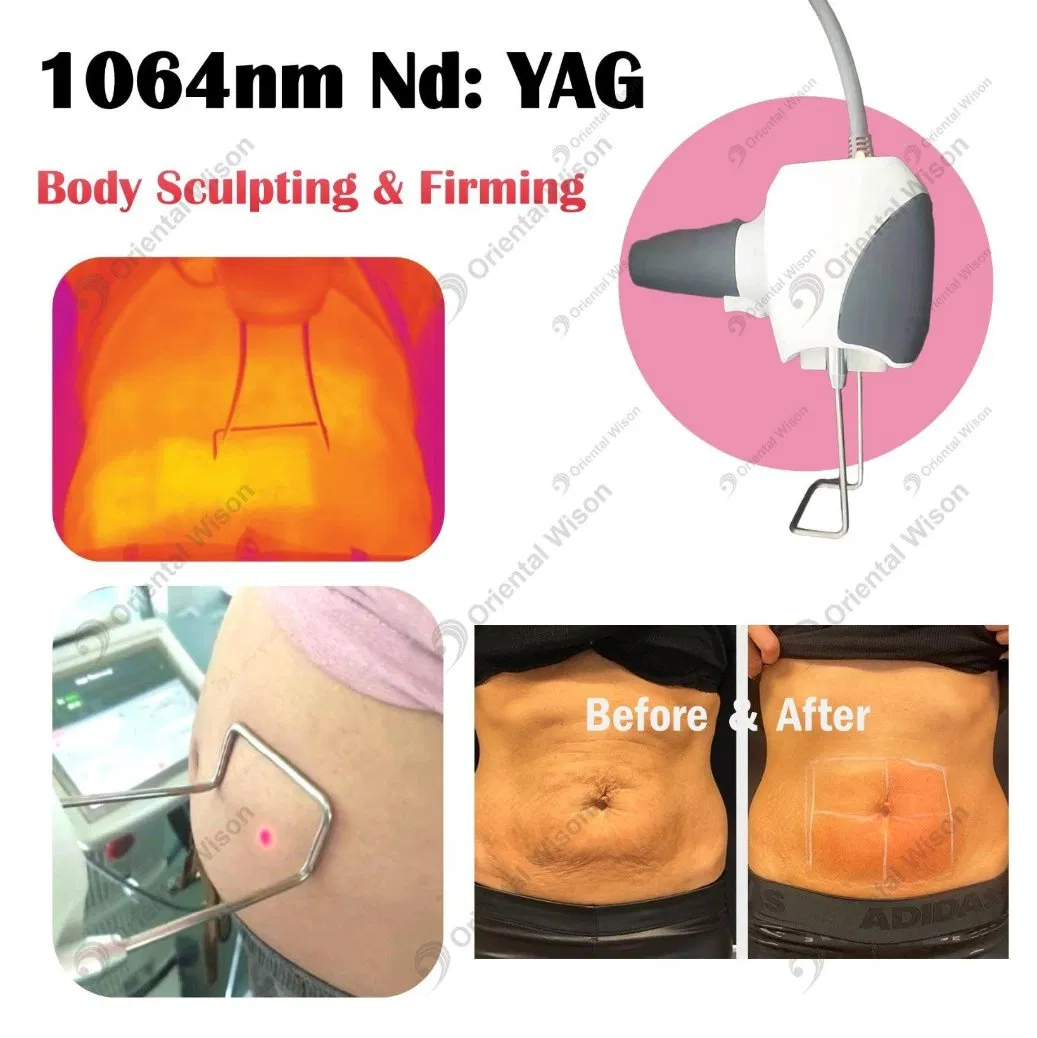

4. Tight Sculpting: Fat-dissolving mode acting on multiple body parts (double chin, abdomen, thighs) for slimming effects.

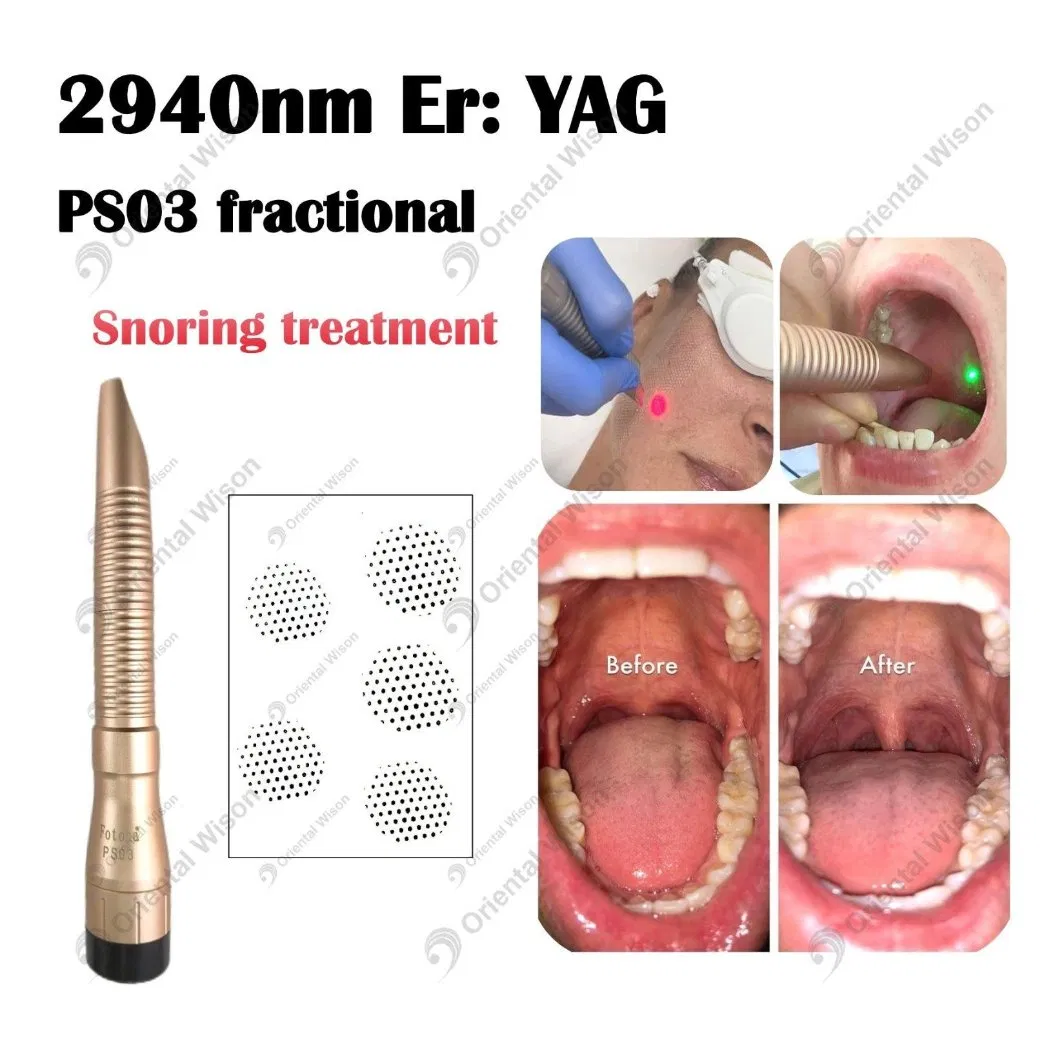

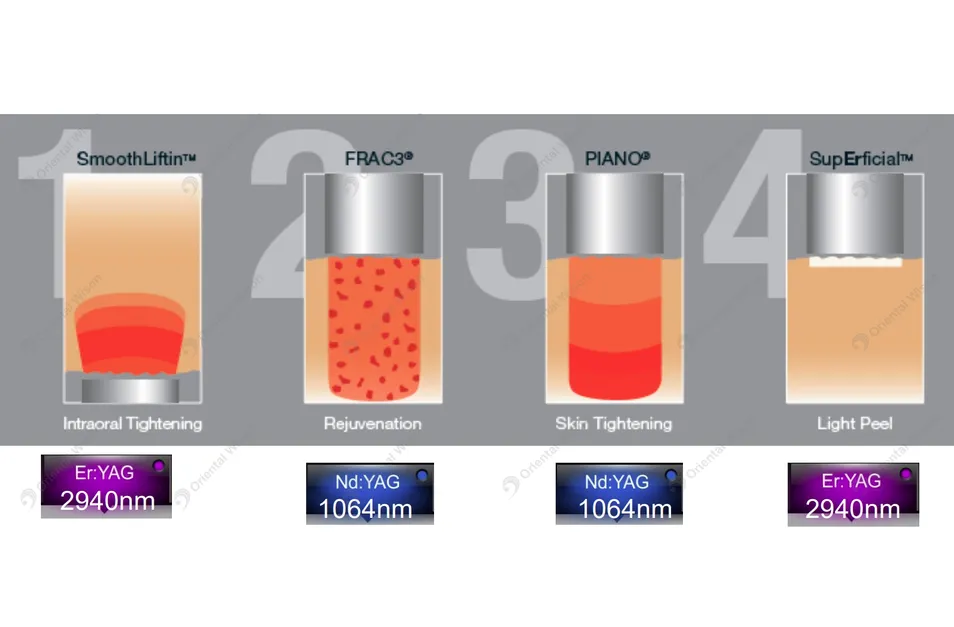

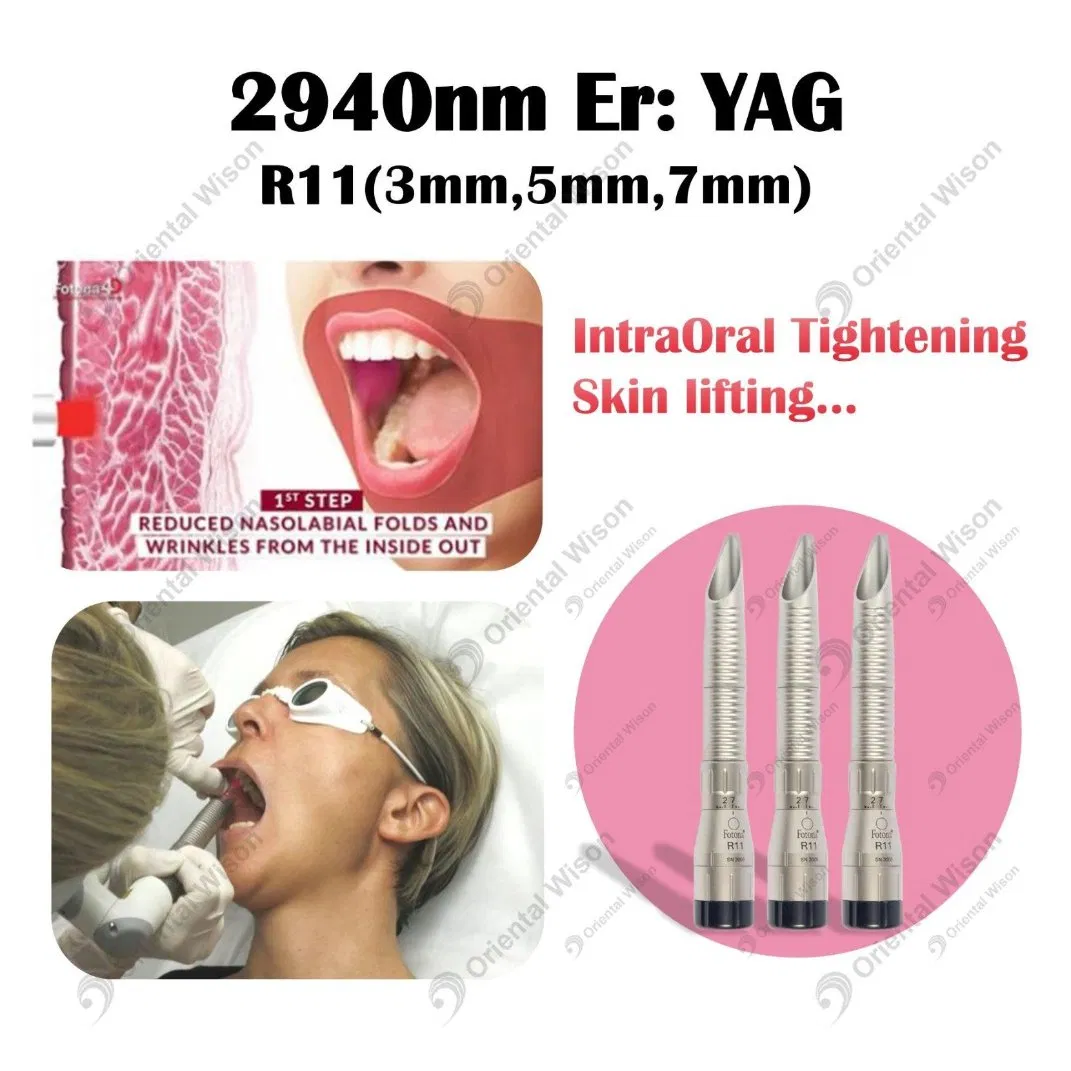

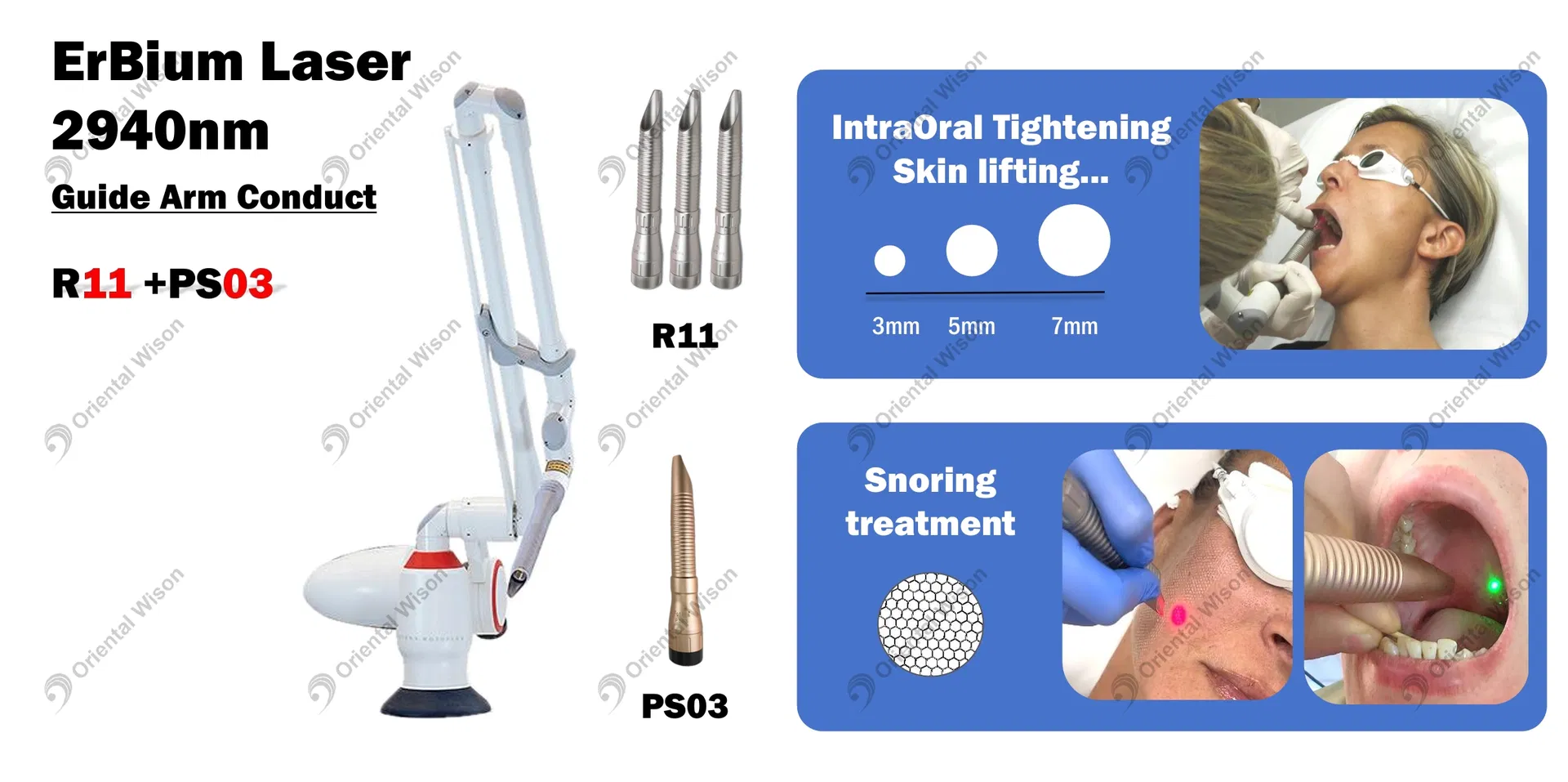

Step 1: SmoothLifting (2940nm) - Intra-oral heating to stimulate collagen and improve skin firmness from within.
Step 2: FRAC3 (1064nm) - Selective destruction of pigment and blood vessels to improve tone and reduce vascular dilation.
Step 3: PIANO (1064nm) - Ultra-long pulse mode for deep tissue heating and skin tightening.

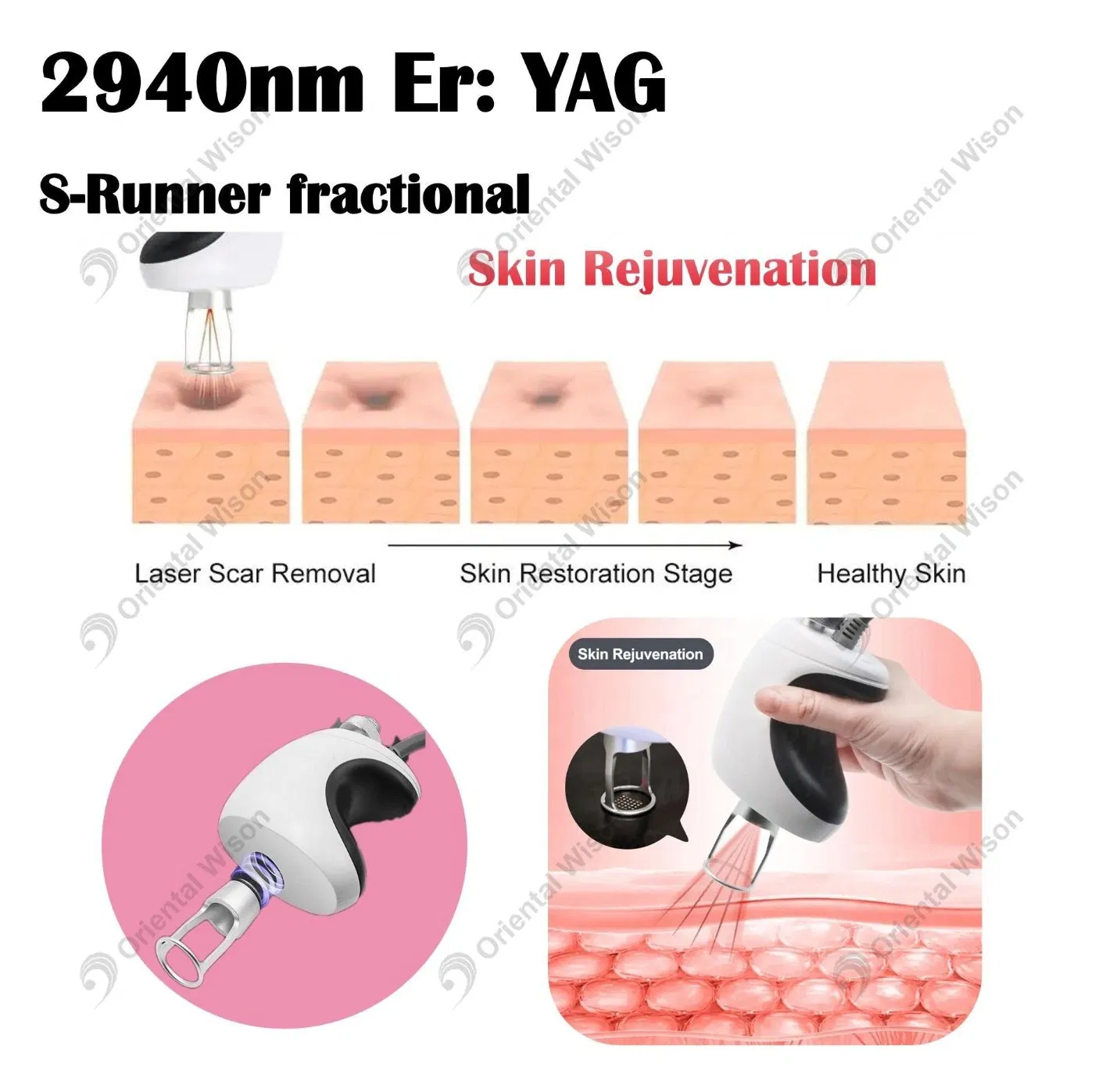

Step 4: Superficial (2940nm) - Light peel to reduce surface wrinkles and improve rough skin texture.
| Feature | Er Yag 2940nm | Nd Yag 1064nm |
|---|---|---|

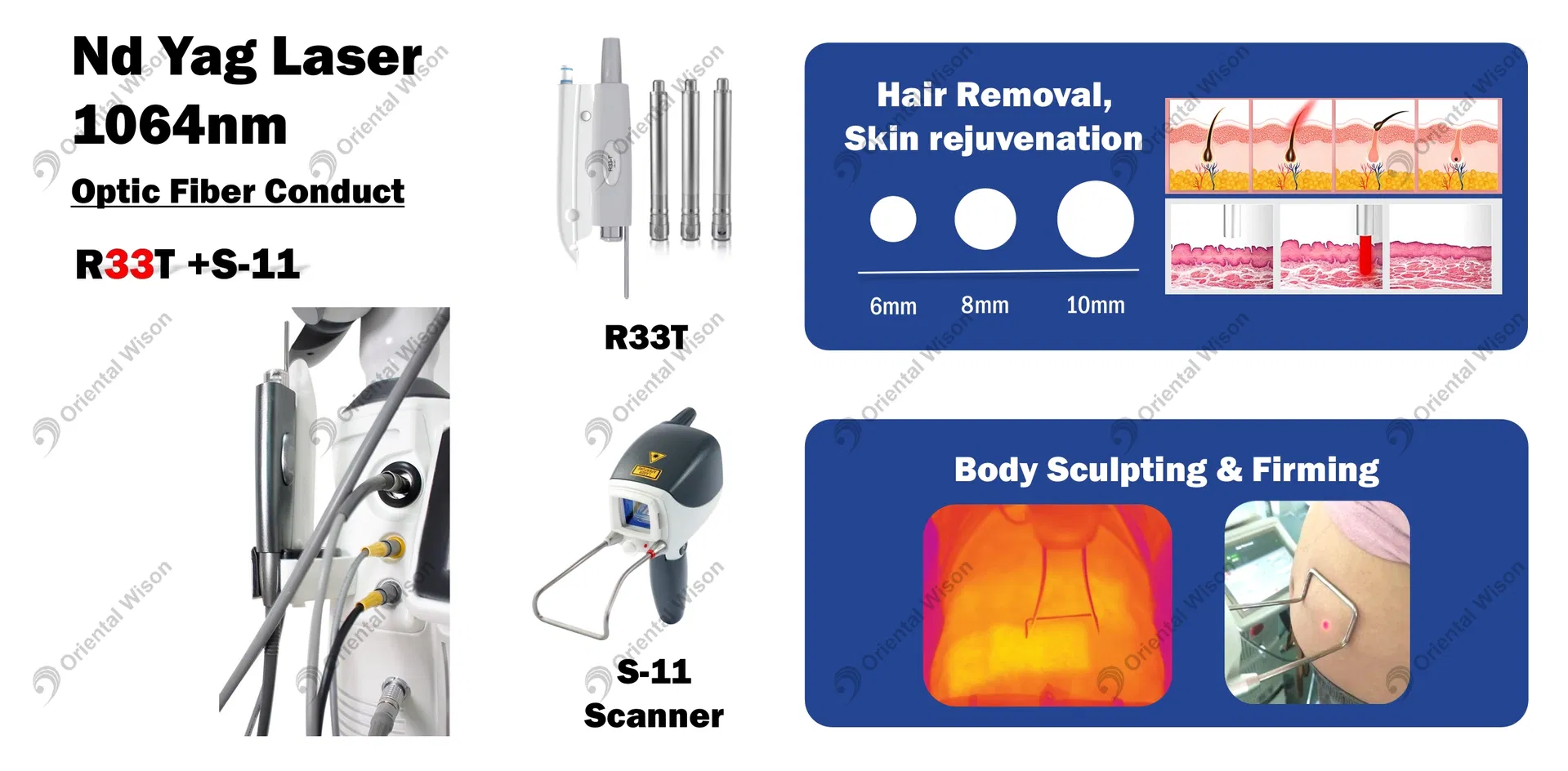

| Treatment Range | Pigment removal, Skin Tightening, Pore removal, Wrinkle removal, Scar removal | Hair removal, Veins removal, Acne removal, Skin rejuvenation, Podiatry |
| Energy | 1.0-3.0 J | 0-600 J/cm² |
| Duration | 0.1-3 ms | 0.1-3 ms |
| Frequency | 1-5 Hz | 1-10 Hz |
| Spot size | 3/5/7 mm | 6/8/10 mm |
| Display | 10.4 inch TFT screen | |
| Power | 3500W | |
