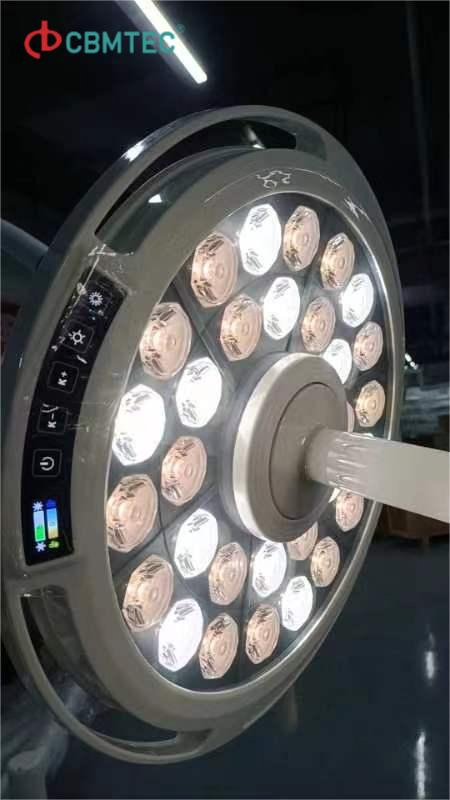

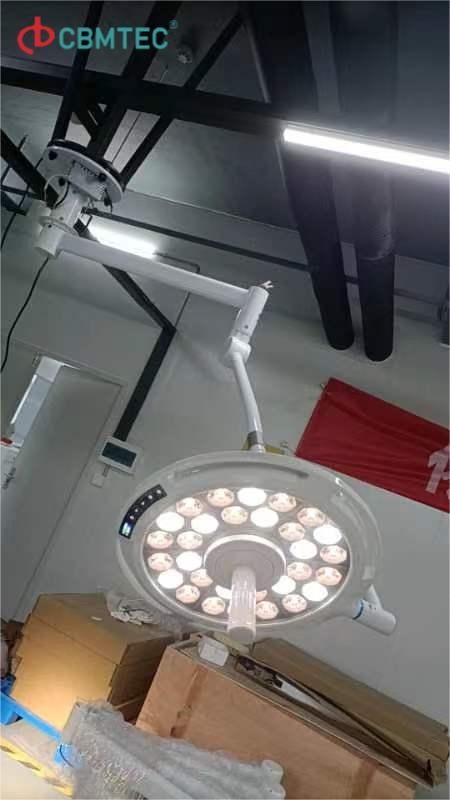

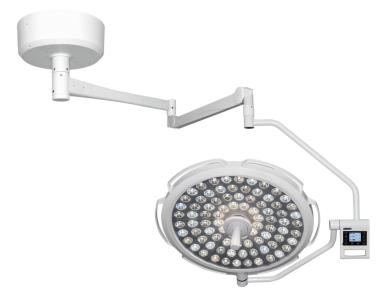

Dental LED Surgery Light Oral Examination Lamp Dental Operatory Light

1 / 5

Dental LED Surgery Light Oral Examination Lamp Dental Operatory Light

Customization:	Available
Classification:	Operation Illuminating Lamps
Certification:	CE, FDA, ISO13485

Send Inquiry

Product Description

Basic Specifications

Model Number

Zw-K700/500(H)

Material

Acrylic, Plastic

Power Source

Electric

Shelf Life

3 Years

Classification

Class II

Illuminance

160000/140000lux

Transport Package

Wooden Box

HS Code

9405409000

Capacity

100 Sets Per Month

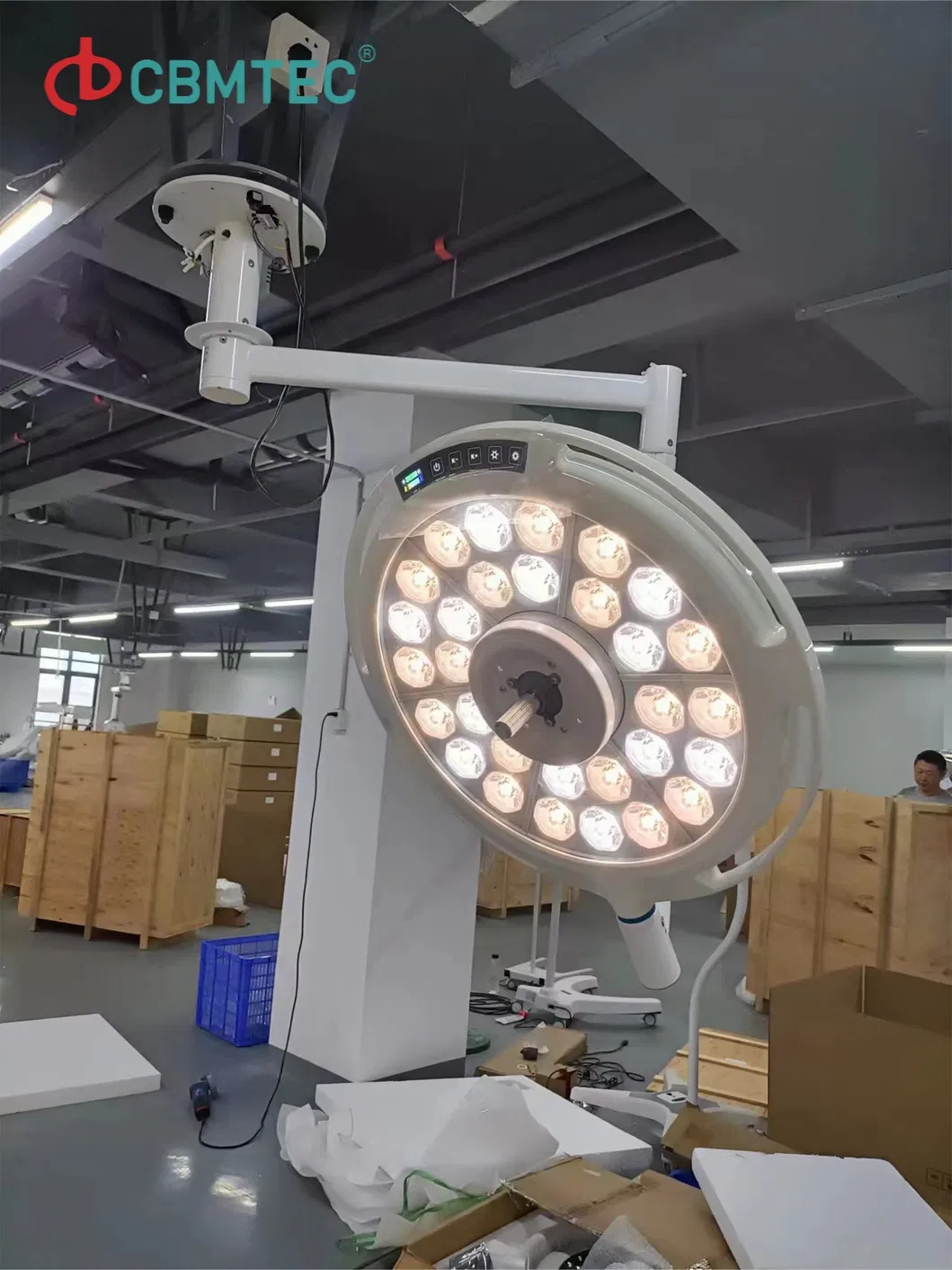

G Series Surgical Light

Product Features

Optical PMMA Lens with Innovative Lighting Collecting Technology for excellent efficiency.
German Osram LED with average lifespan over 50,000 hours.
PWM Dimming System with flexibly adjustable color temperature.
Engineering plastics and aerospace-grade aluminum top cover with 360° circle handle.
Buckle type plugin detachable sterilized handle for easy cleaning.
Constant Current Drive for stable operation and long usage life.

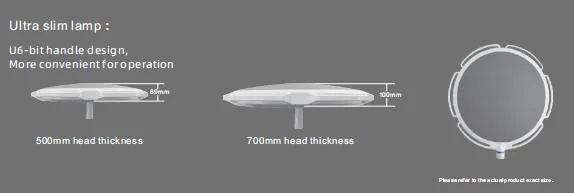

Ultra-slim streamline design (700 Dome thickness only 100mm).
One-button mode switching: Standard, Endoscope, and Low Light lighting.
Adjustable field diameter and optional camera integration.

Model	700 Lamp Head	500 Lamp Head
Voltage	AC 100-240V, 50-60Hz
Illumination	40,000 - 160,000 Lx	40,000 - 120,000 Lx
Color Temperature	4,000-5,000 K (Adjustable)
Lamp Power	100 VA	98 VA
Spot Diameter	180-280 mm (Adjustable)
CRI (Ra)	≥ 90
Lighting Depth	≥ 950 mm	≥ 1,100 mm
LED Bulb Life	≥ 50,000 h

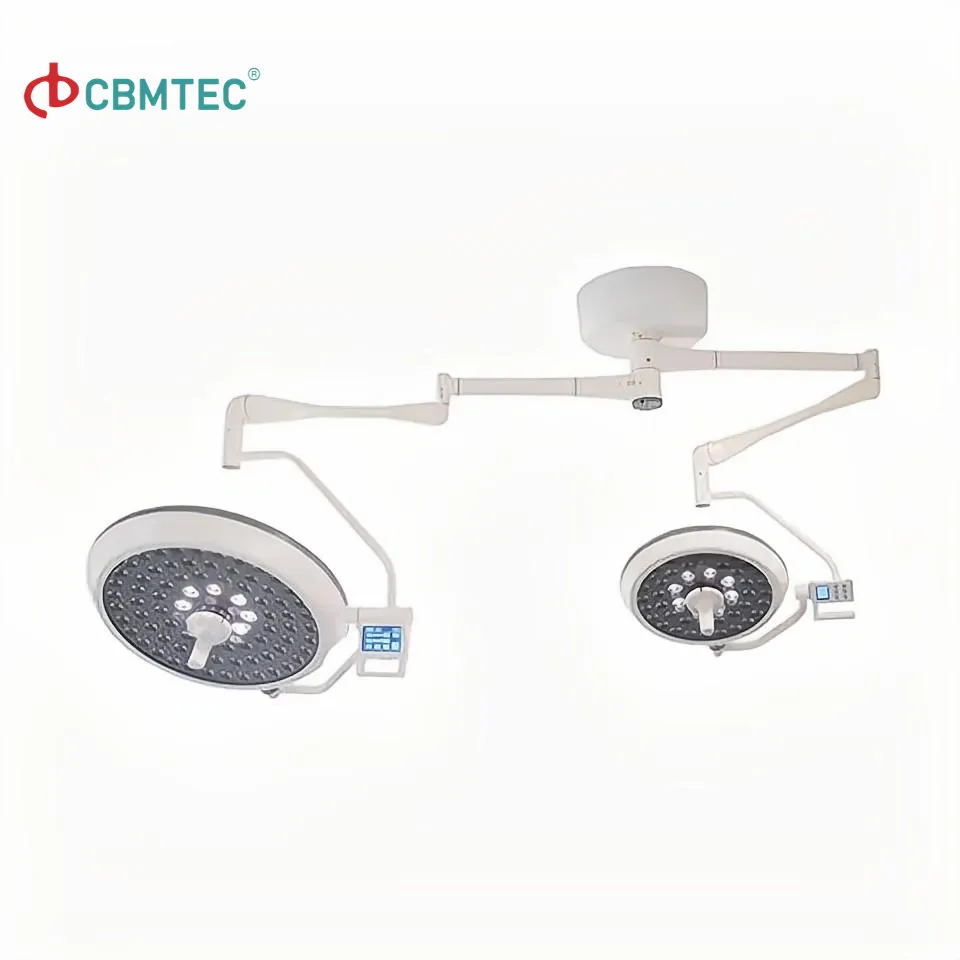

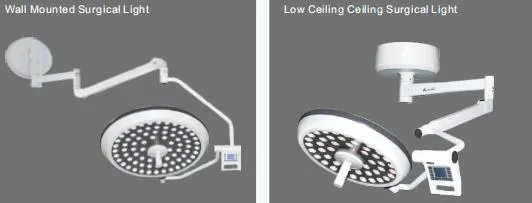

D Series Surgical Light

Key Advantages

Simple and clear operating system for intuitive control.
German Osram LED with high light efficiency.
Aluminum board heat dissipation and unique collecting technology.
PWM Dimming System and adjustable field diameter.
Multi-mode lighting: Standard, Endoscope, and Low Light.

Model	700 Lamp Head	500 Lamp Head
Illumination	40,000 - 160,000 Lx	40,000 - 120,000 Lx
Spot Diameter	120-260 mm	120-280 mm
CRI (Ra)	≥ 85
Lighting Depth	≥ 600 mm	≥ 800 mm
LED Quantity	80 pcs	48 pcs

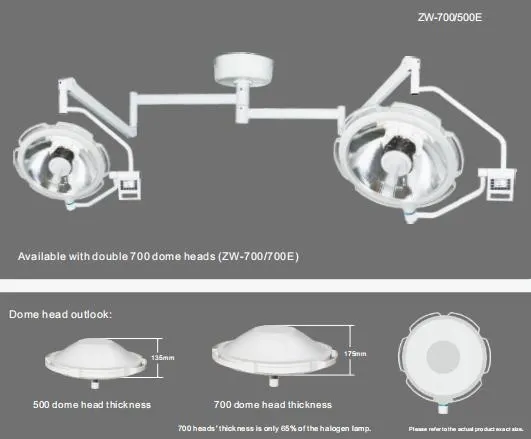

Entire Reflective LED Surgical Light

Reflective Technology Features

Polyoptic reflector for unique light collection and low energy consumption.
Superior shadowless effect for critical surgical environments.
Lightweight cast aluminum bracket + aluminum board for optimal heat dissipation.
Optional HD built-in or external camera systems.

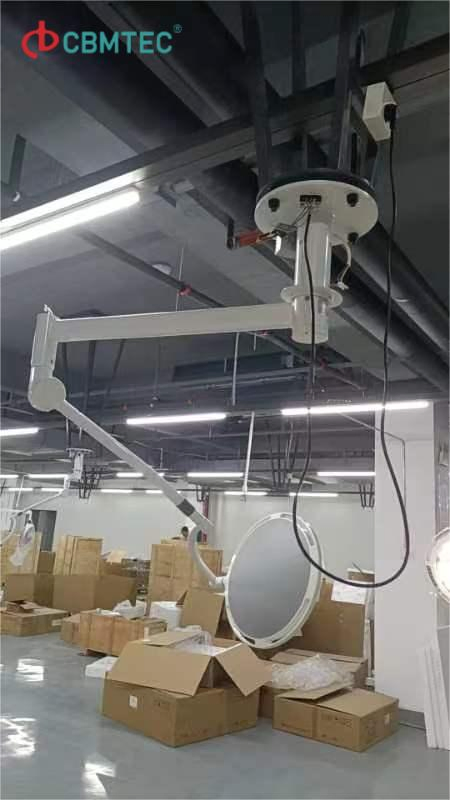

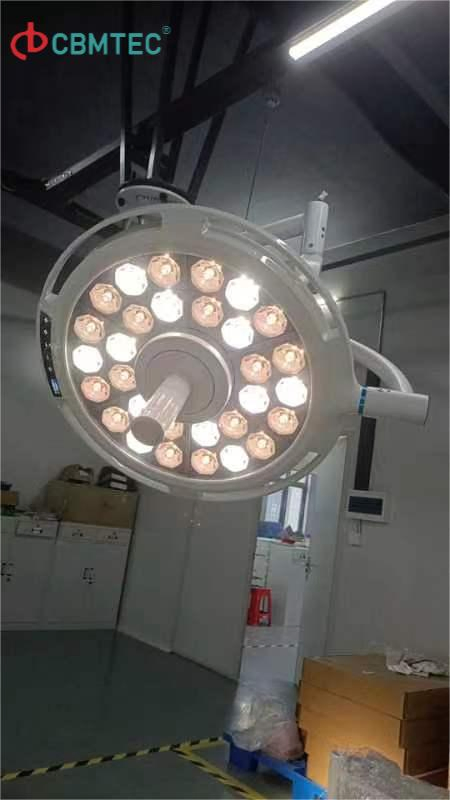

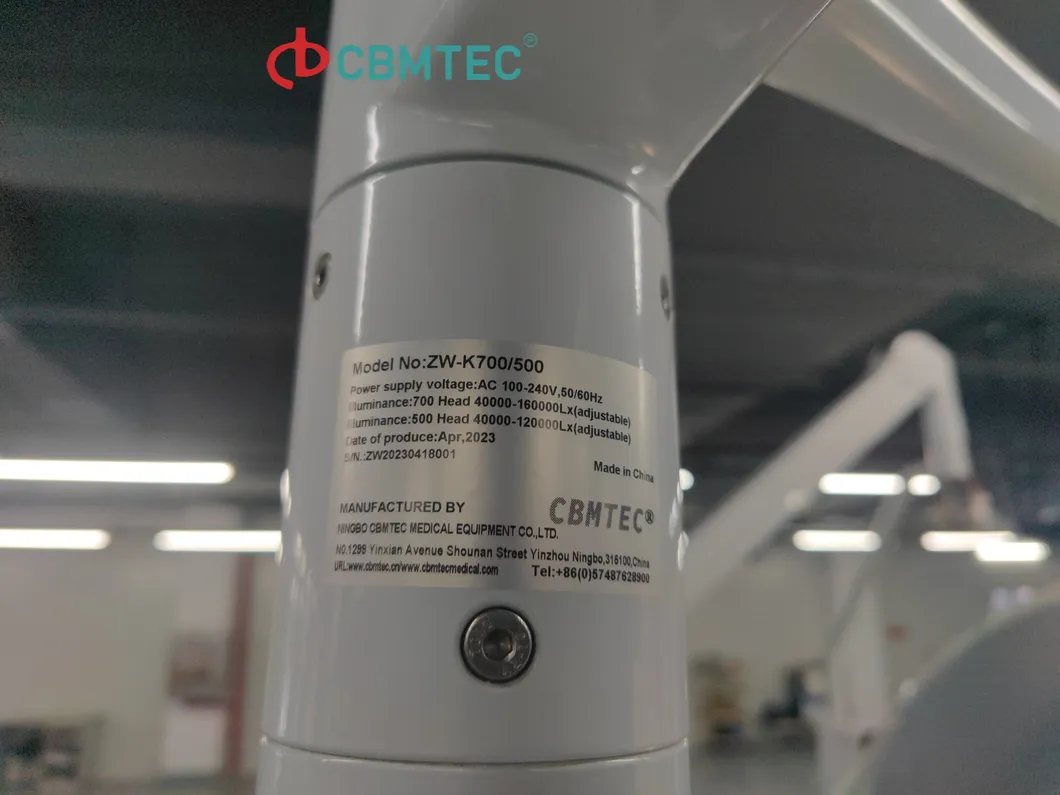

Product Details & Packing

Professional Services

Customization Support

OEM Available

Logo Printing

Fast Worldwide Shipping

We provide comprehensive solutions for surgical lighting and allied gas items, including gas cylinder valves, regulators, and medical oxygen systems.

Frequently Asked Questions

1. What is the expected lifespan of the LED bulbs?

All our surgical lights utilize high-quality German Osram LEDs with an average lifespan of over 50,000 hours.

2. Is the color temperature adjustable?

Yes, our lights feature a PWM Dimming System that allows the color temperature to be flexibly adjusted between 4,000K and 5,000K.

3. Can the lamp be used for endoscope procedures?

Absolutely. Our systems include a one-button mode switch to change between Standard, Endoscope, and Low Light lighting modes.

4. Are the handles of the surgical light sterilizable?

Yes, the lights are equipped with buckle-type plugin detachable handles that are easy to clean and fully sterilizable.

5. What is the thickness of the 700 series dome?

The 700 dome features an ultra-slim streamline design with a thickness of only 100mm, optimized for laminar flow.

6. Do you support OEM and custom branding?

Yes, we support full customization based on special requests, including OEM services and special logo printing.
