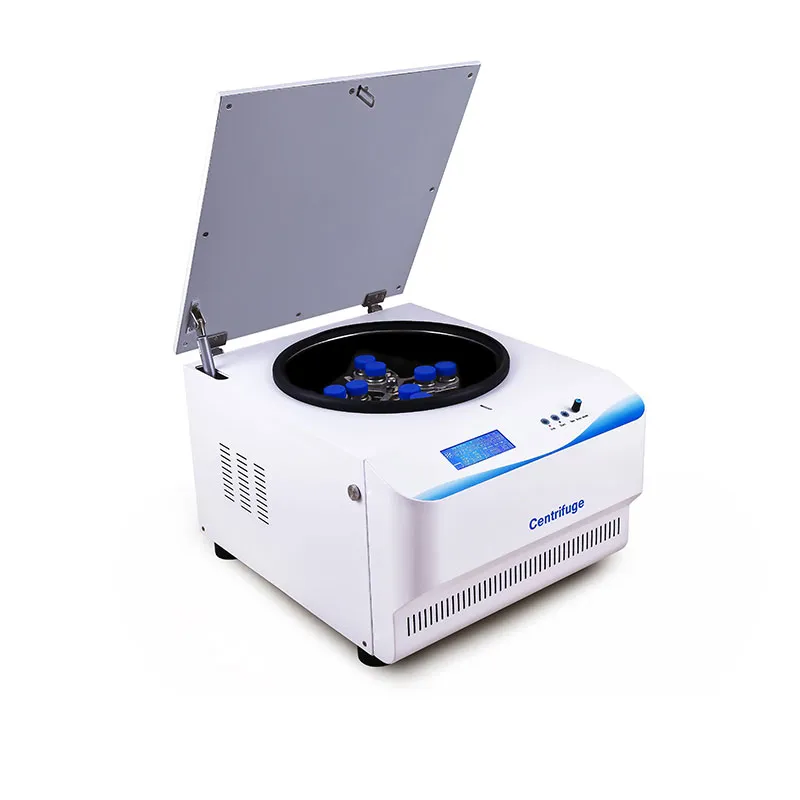

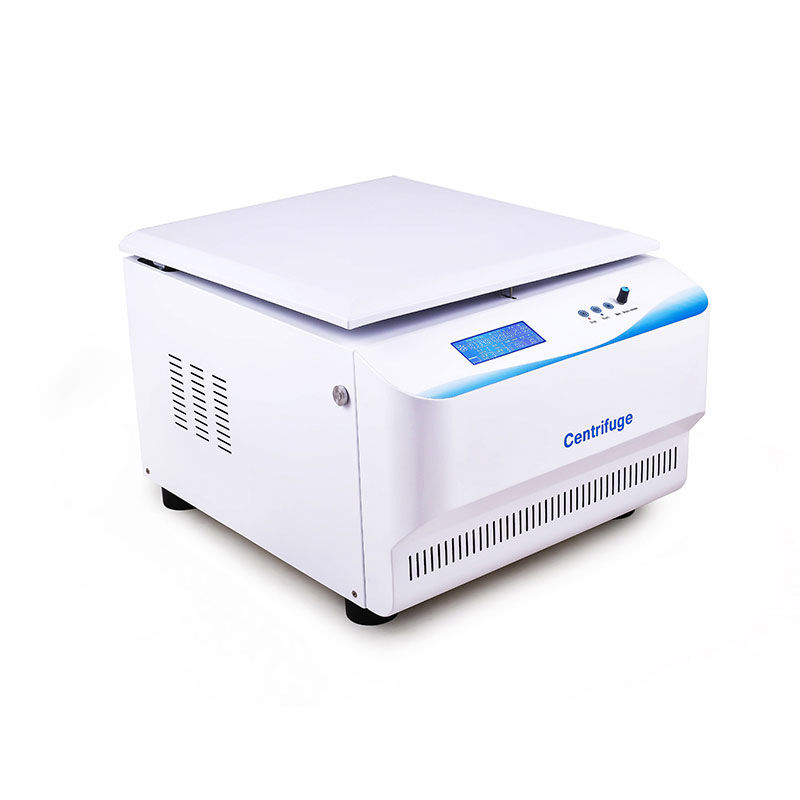

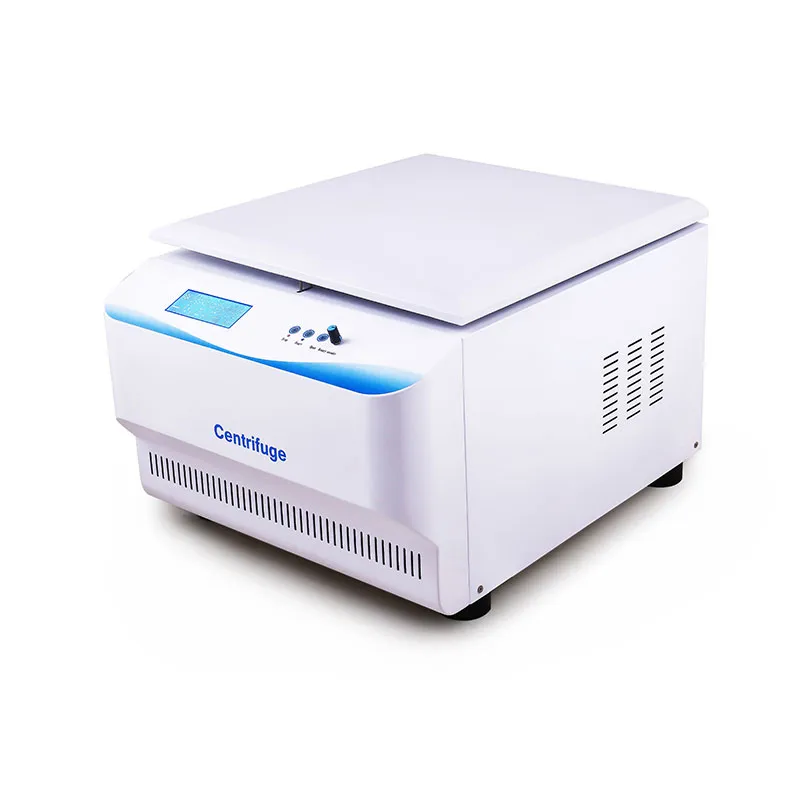

Desktop large capacity low speed centrifuge with stable speed for laboratory centrifugation
The CYKY-5D desktop large-capacity low-speed centrifuge features stable speed, large carrying capacity, and low noise. It is a standard laboratory instrument used for centrifugal precipitation, widely applied in clinical medicine, biochemical immunology, and other research fields.
| Parameter | Specifications |
|---|---|
| Model | CYKY-5D Desktop Multi-purpose Centrifuge |
| Max speed | 5200r/min |
| Max RCF | 5132×g |
| Timing Range | 0 ~ 99min59s |
| Speed Accuracy | ±10r/min |
| ACC / DEC rate | Gear 0~9 |
| Motor | Frequency Conversion Motor |
| Power | AC 220V 50Hz 15A |
| Noise | ≤58dB |
| Dimensions | 470×580×367mm(L×W×H) |
Displays speed, centrifugal force, temperature, and time. Parameters can be adjusted during operation without stopping.
Equipped with electromagnetic locks and an emergency button for manual door switching during power outages.
Centrifugal chamber made of high-quality 304 stainless steel with moisture-proof suspended circuit boards.
Leading "Bottom Triangular Link Motor Fixation" ensures stability and high-speed performance.
| Number | Rotor Type | Rate (r/min) | Max RCF (xg) | Capacity |
|---|---|---|---|---|
| NO.1 | Swing Rotor | 5200 | - | All adapters |
| NO.2 | Swing Rotor | 5200 | 5132 | 4×50ml |
| NO.3 | Swing Rotor | 4000 | 2947 | 4×100ml |
| NO.4 | Swing Rotor | 4000 | 3040 | 8X50ml |
| NO.5 | Swing Rotor | 4500 | 3708 | 16X10/15ml |
| NO.6 | Swing Rotor | 4000 | 2810 | 32×5ml |
| NO.8 | Swing Rotor | 4000 | 3600 | 4×250ml |
| NO.9 | Micro-plate | 4000 | 2300 | 2X2X96 |
