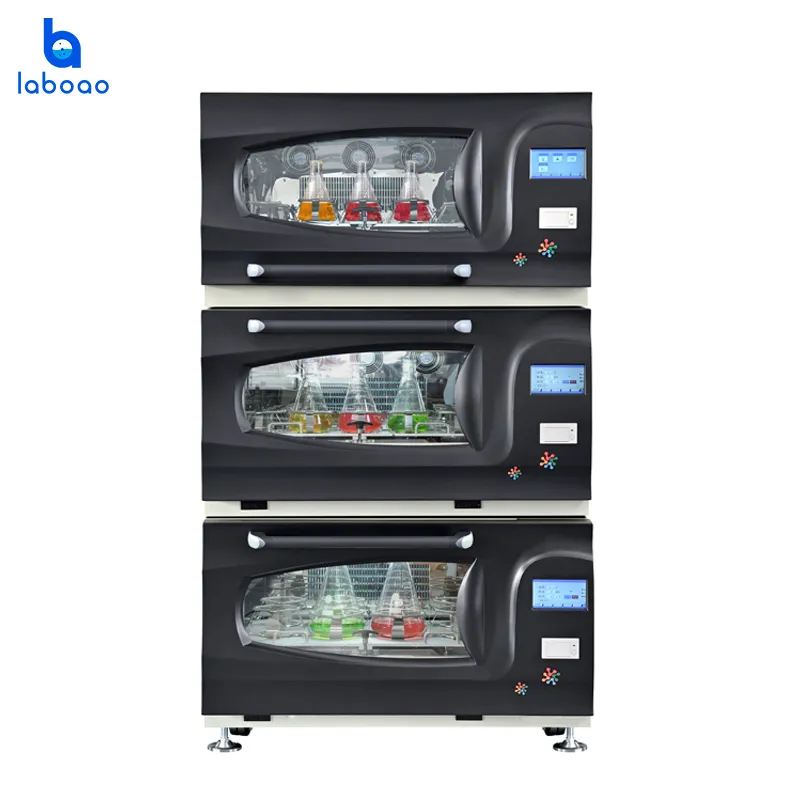

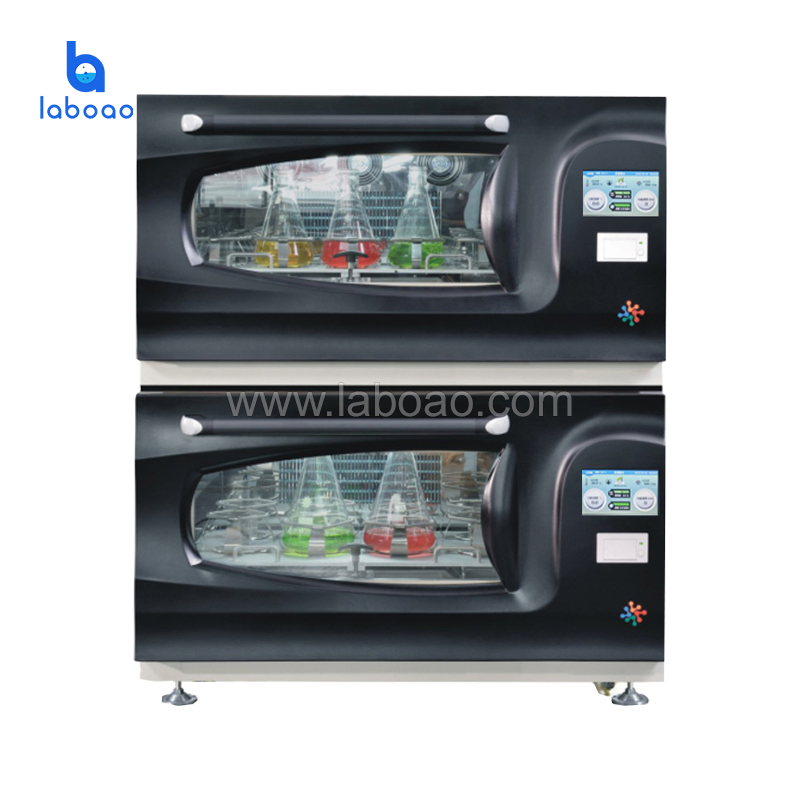

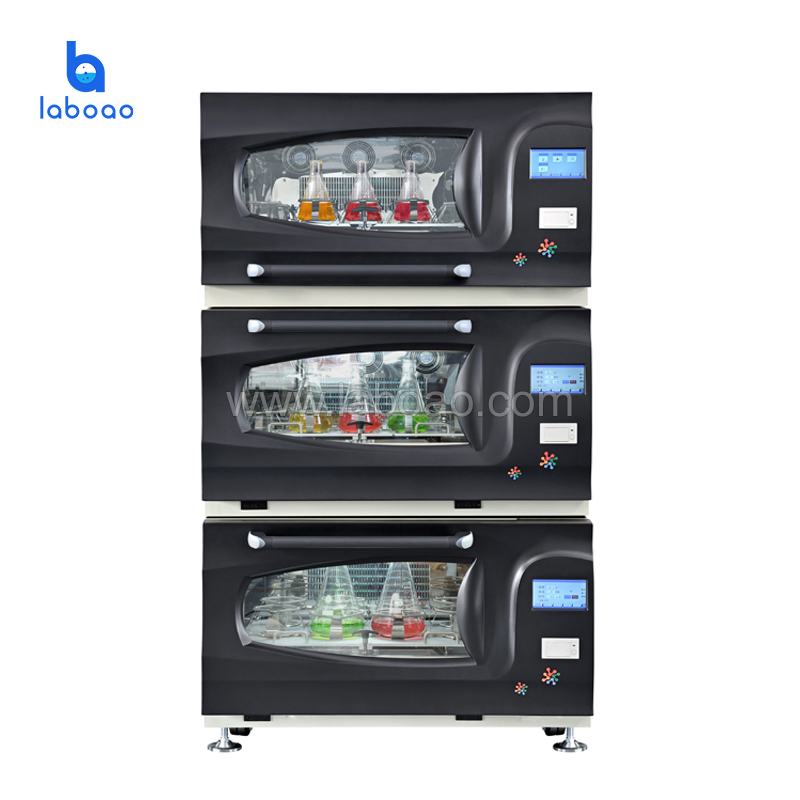

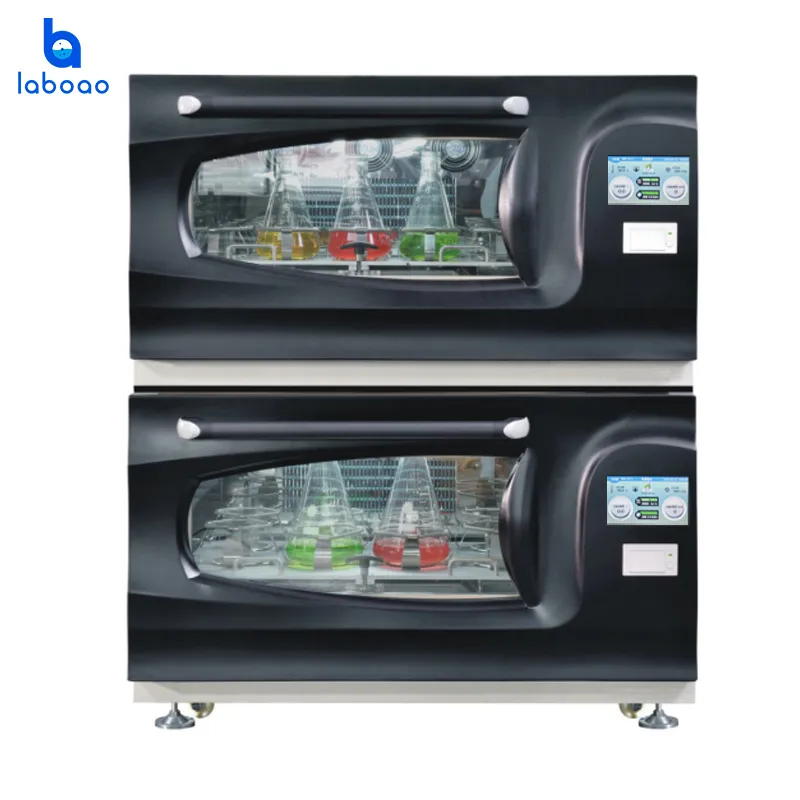

The mixed carbon dioxide constant temperature culture shaker adopts a single-axis balance device drive mode, ultra-low noise, CO2 control range of 0-20%, CO2 control accuracy of 0.10%, with upper and lower limit over-temperature sound and light alarm; Lower limit over-speed alarm; independent over-temperature protector; door open shutdown protection;
The safety function of the leakage or overcurrent protection device, widely used in bacterial culture, fermentation, crossover and biochemical reactions, enzymology, cell tissue research, etc.


| Parameter | Details |
|---|---|
| Control Method | P.I.D (Microcomputer environment scanning processing chip) |

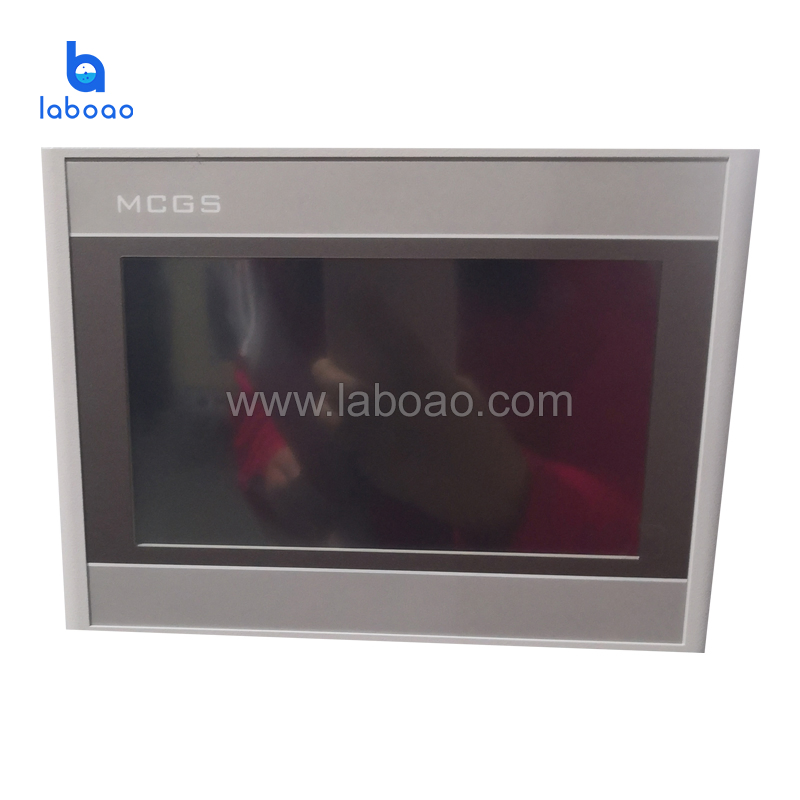

| Display Method | 7-inch color touch screen |
| Rotation Frequency | 10-300rpm (±1rpm) |
| Temperature Range | 4℃-60℃ (±0.1℃ accuracy) |
| Temperature Uniformity | ±1℃ |
| CO2 Control Range | 0-20% (0.10% precision) |
| Oscillation Mode | Rotary oscillation (Φ25mm amplitude) |
| Refrigerant | CFC-Free (134A) fluorine-free safety refrigeration |
| Maximum Capacity | 250ml*40, 500ml*28, 1000ml*15, 2000ml*12 |
| Inner Cavity Size | 870*550*395H mm |
| Dimensions (Single) | 1150*780*630H mm |
| Inner Material | 304 high quality imported stainless steel mirror panel |
| Power Supply | AC 200-240V 50-60HZ |
