Product Description

i

Basic Information

Model NO.
L-5
Application
Metal
Standard
ISO, ASTM, GB/T
Warranty
1 Year
Mobility
Portable
Calibrating
Standard Test Blocks
Rated Voltage
3V
Language
English / Chinese
Impact Prob
D Prob (C/DC/Dl/G/D+15/E)
Interface
USB2.0
Direction
360 Degree
Scales
HL, HB, HRB, HRC, HRA, HV, HS
Capacity
300 Sets Per Month
HS Code
9024102000
★

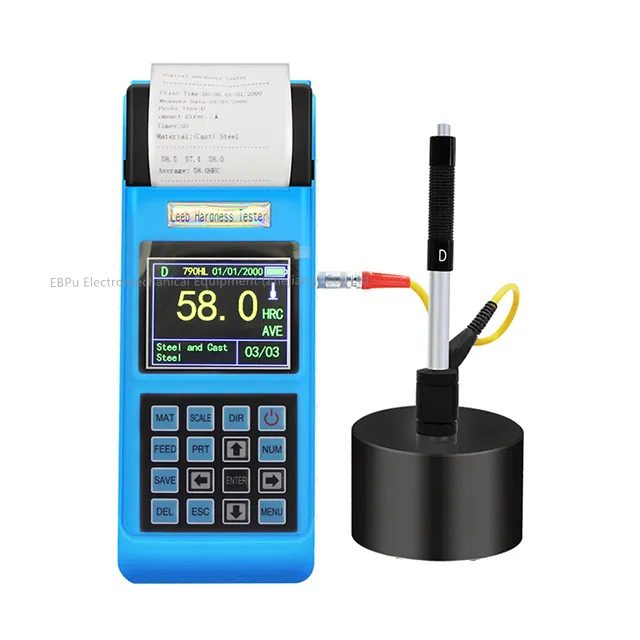

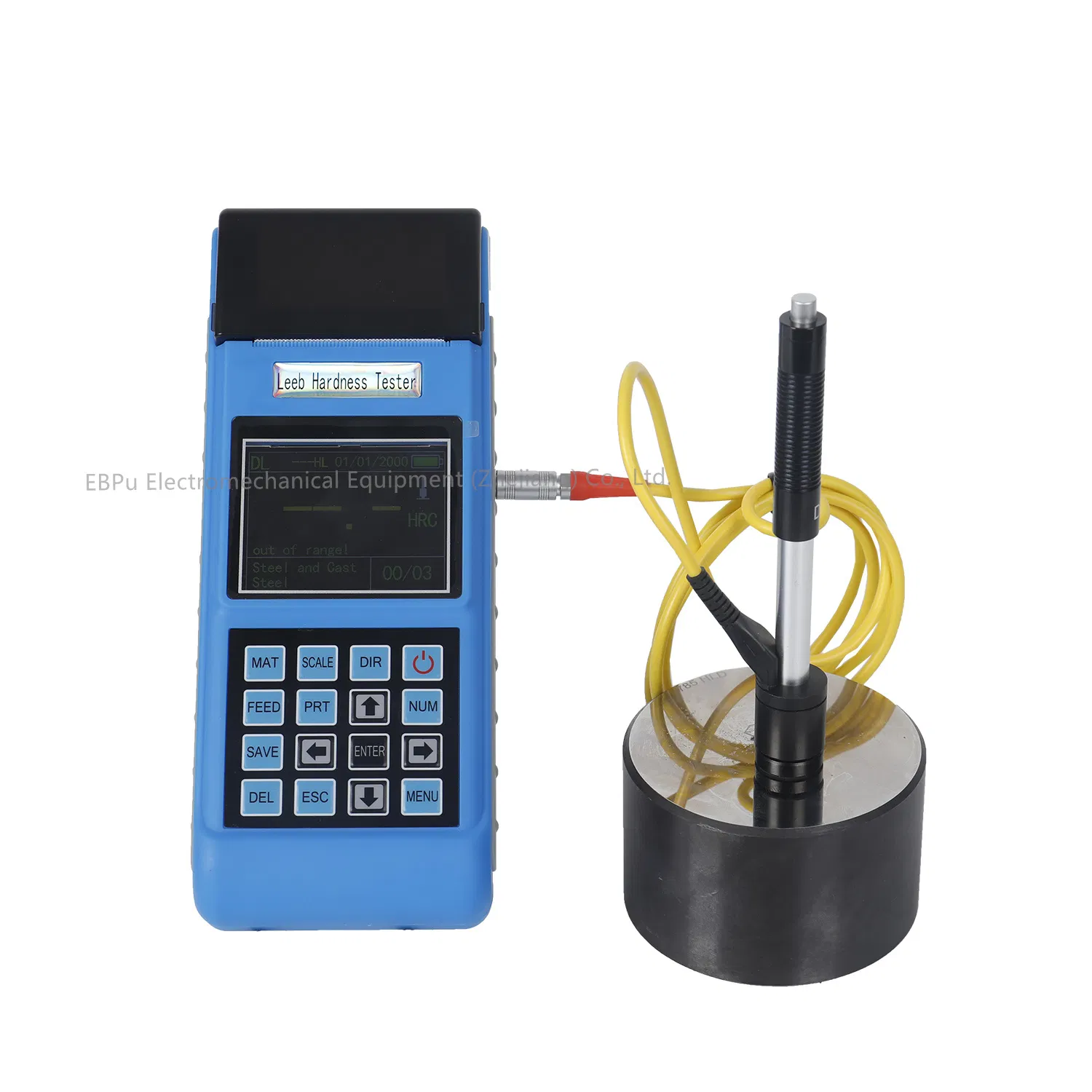

Product Description

Large screen (240*320 TFT display), showing all functions and parameters.
Test at any angle, even upside down.
Support forged steel material reading HB value directly.
Wide measuring range for all metallic materials with direct display of HRB, HRC, HRA, HV, HB, HS, HL.
Large capacity memory storing 600 groups of test information.
Auto-alarm for preset upper and lower limits.
USB port with multifunctional data proceeding software.
Integrated high speed thermal printer for immediate data output.
3000mA Li rechargeable battery providing no less than 150 hours continuous work.
Sturdy, industrialized housing design suitable for harsh environments.

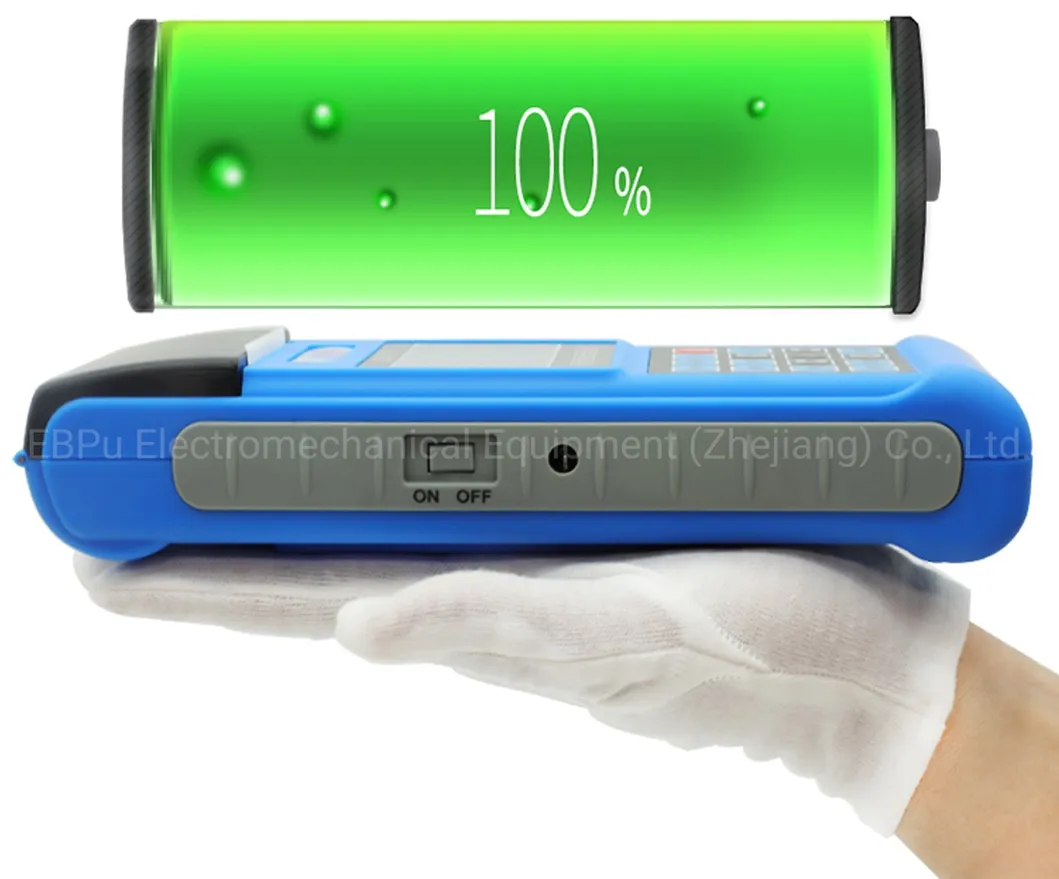

Hardness Tester Battery

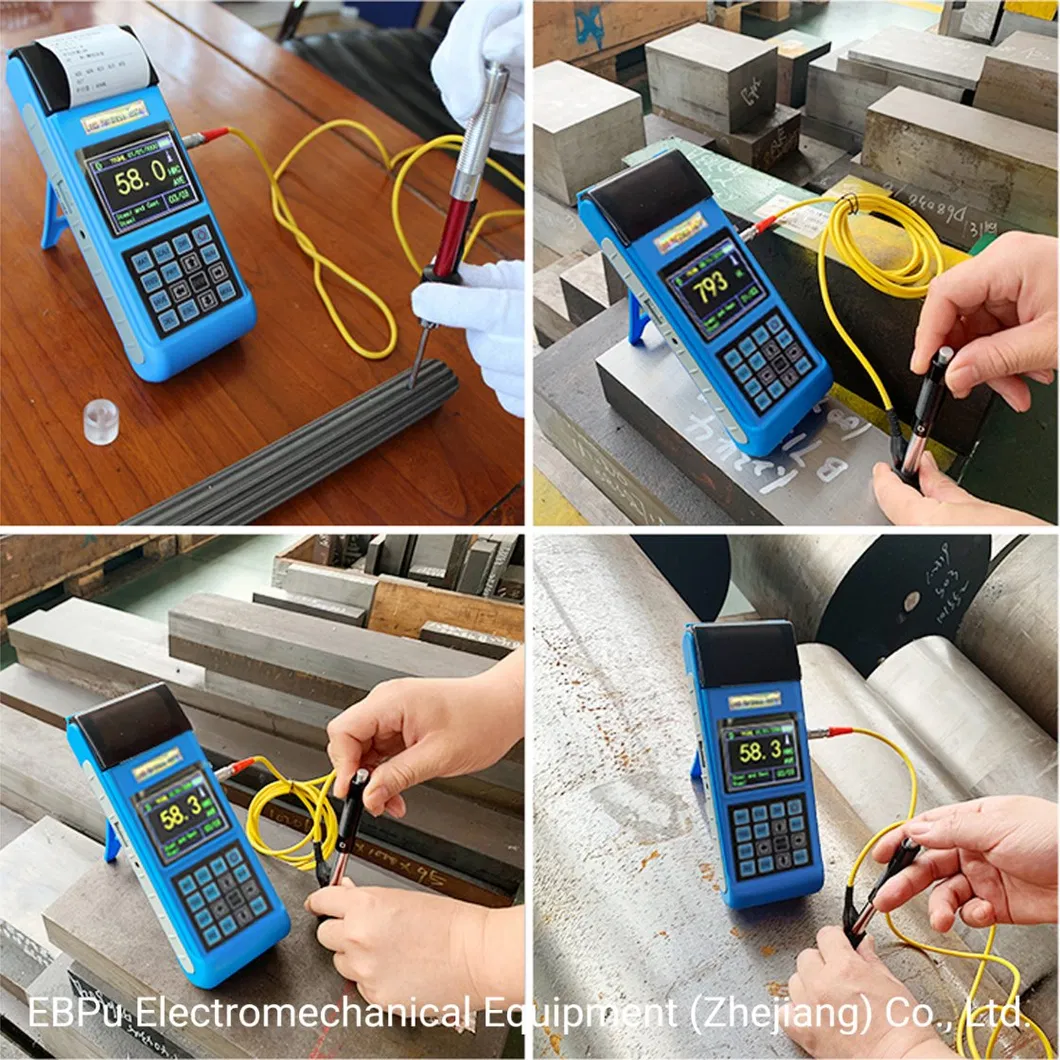

Hardness Tester Features Hardness Tester Operation
⚙

Technical Specification

Parameter Details
Measuring RangeHLD(170-960), HRC(17.9-69.5), HB(19-683), HV(80-1042), HS(30.6-102.6)
Impact DirectionsUp, down, horizontal, slanting up, slanting down
Measuring MaterialsSteel, alloy tool steel, stainless steel, cast iron, aluminum alloy, brass, bronze
StandardsASTM A956, DIN50156-1, GB/T17394-1998
Tensile Strength374 to 2652 N/m²
Memory600 groups max
Dimensions210 * 85 * 45mm
Weight0.6kg (host)
✔

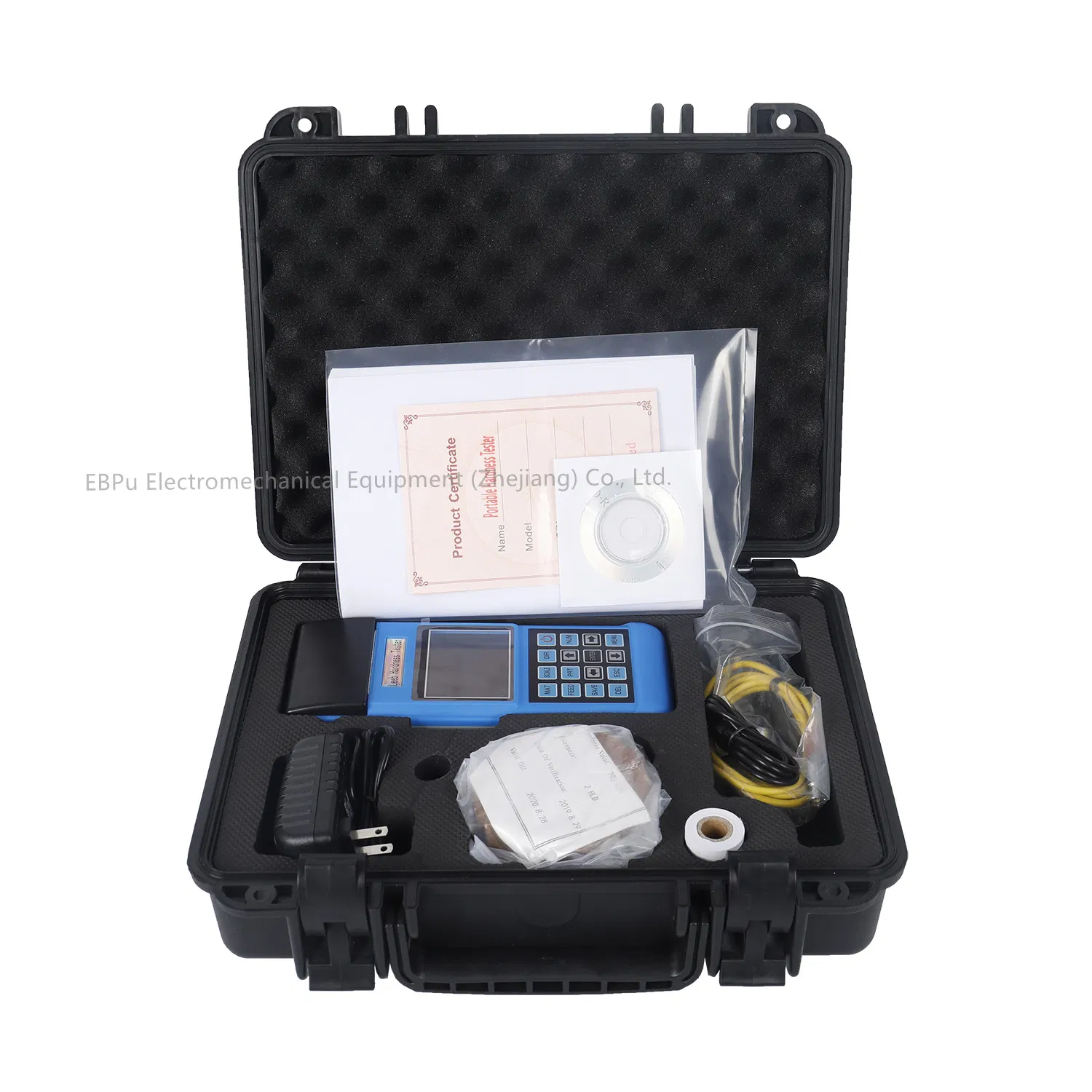

Packing List

Item Quantity Remarks
Main Unit1 PC-
D type impact device1 PCWith cable
Standard test block1 PC-
Cleaning brush1 PC-
Small support ring1 PC-
Battery Charger1 PC9V 500mA
Data Pro software1 PC-
Communication cable1 PC-

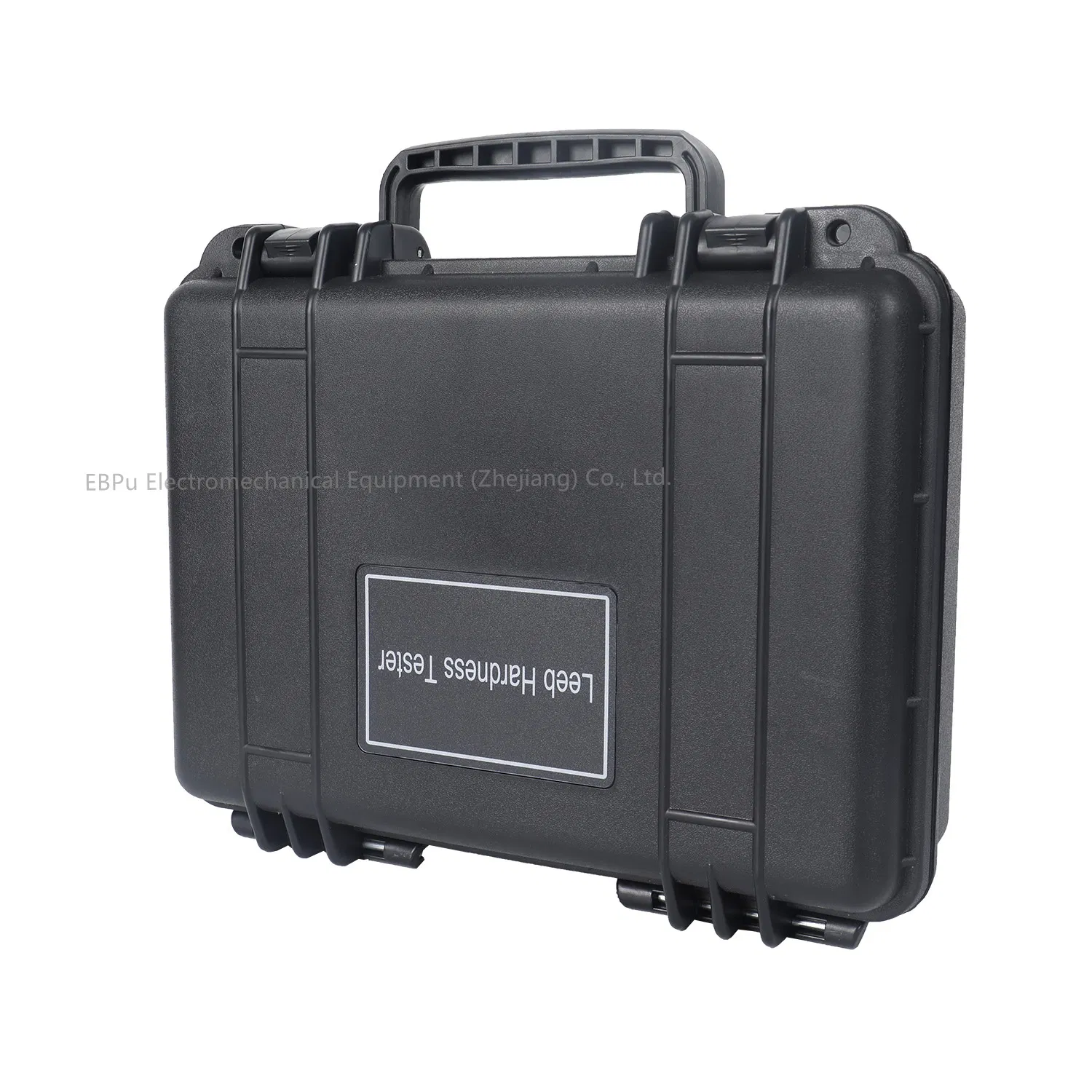

Instrument case1 PC-
▣

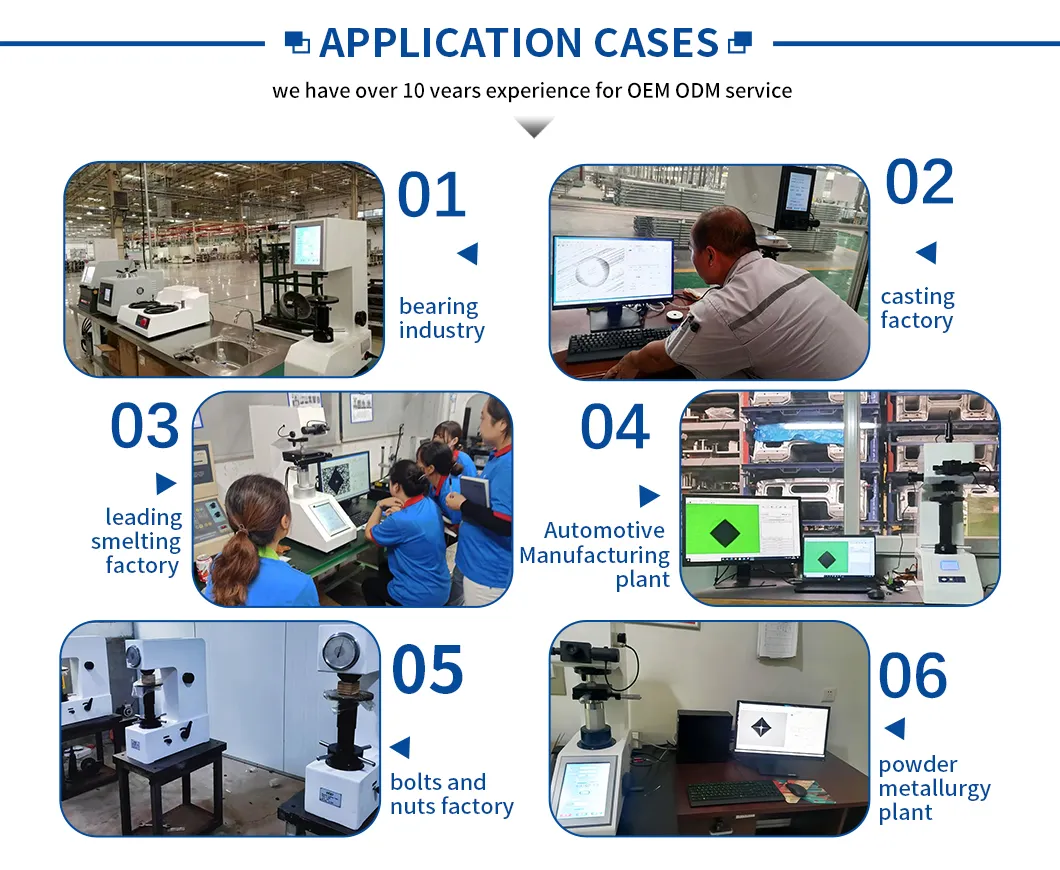

Applications & Portfolio

The equipment is widely used in die cavity of molds, bearings, pressure vessels, steam generators, and heavy work pieces. It is ideal for material identification and rapid testing in large-scale areas.

📋

Certifications

Certification
?

Frequently Asked Questions

Q: What metallic materials can this instrument test?
A: It can test steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, and various copper alloys.
Q: Can it perform tests at different angles?
A: Yes, the instrument supports 360-degree testing, including vertical, horizontal, and upside-down positions.
Q: How many test results can be stored in the memory?
A: The large capacity memory can store up to 600 groups of test information, including single values and average results.
Q: What is the battery life of the portable tester?
A: With the 3000mA Li rechargeable battery, it can work continuously for no less than 150 hours (with EL off and no printing).
Q: Is there software available for PC data management?
A: Yes, it includes a USB port and multifunctional data proceeding software to communicate with a computer.
Q: What hardness scales are supported?
A: It directly displays hardness scales including HRB, HRC, HRA, HV, HB, HS, and HL.
