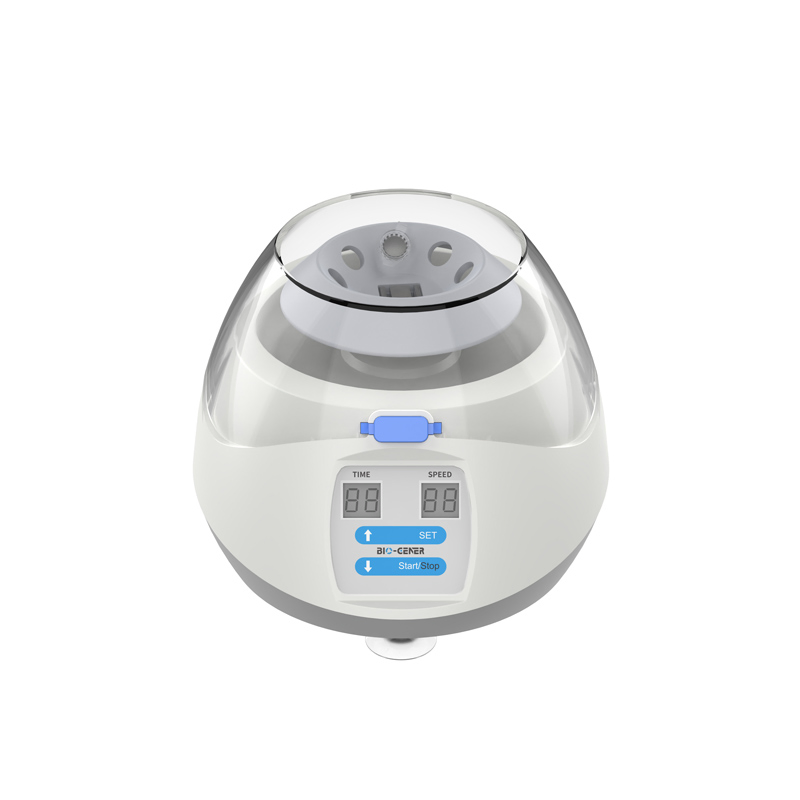

High speed 4000rpm-10000rpm PCR Micro medical centrifuge
Micro centrifuge utilizes the principle of centrifugal sedimentation to separate, concentrate, and purify solutions of different particle densities. The specialized PCR head is designed for micro centrifugation, cell separation, and rapid separation from test tube walls. The unit consists of a main engine (chassis, drive system, control system) and various accessories.
Structure composition: Usually composed of a control system, centrifugal cavity, drive system, rotor, and safety protection devices.
| Rotor | Preparation Capacity Combination Mode |
|---|---|
| Rotor 1 | 8×1.5ml, 8×0.5ml (plus 0.5ml adapter) and other combinations |
| Rotor 2 | 0.5 ml x 8, 0.2 ml x 24, 0.2 ml * 8 x 4, 0.2 ml * 8 * 8 + 2 + 0.5 ml of 0.2 ml 8 and other combination methods |
| Model Number | MC-10K | ||
| External Dimensions | 210×170×138 (mm) | Overall Machine Noise | ≤70dB |
| Power Supply | 100-240VAC, 50/60Hz, 30W | Speed Deviation | Within ±2.5% at rated voltage |
| Max Rotational Speed | 10000 (r/min) | Speed Stability | Within ±1% at rated voltage |
| Max Preparation Capacity | 8 x 1.5 ml | Amplitude | ≤ 0.1mm at max speed |
| Max Centrifugal Force | 5000g | Temp. Rise of Solution | ≤10ºC after 20min operation |
| Weight | 1.30 kg | Rise/Fall Time | Rise ≤5min; Reduction ≤7min |
| Electrical Safety | Complies with GB 4793.1 and GB 4793.7 standards | ||
